Product Details:
Payment & Shipping Terms:
|
Type: | High Pressure Crawler Drill,Drill Shank,Agricultural Hydroponics,Core Drilling Rig | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support |
---|---|---|---|
Warranty: | 12 Months | Usage: | Water Well |
Power Type: | Diesel | Condition: | New |
Certification: | ISO9001,ISO,ENERGY SAVING,CE | Product Name: | 200m Pneumatic Tractor Mounted Water Well Drilling Rig Machine Price |
Drilling Depth: | 200m |

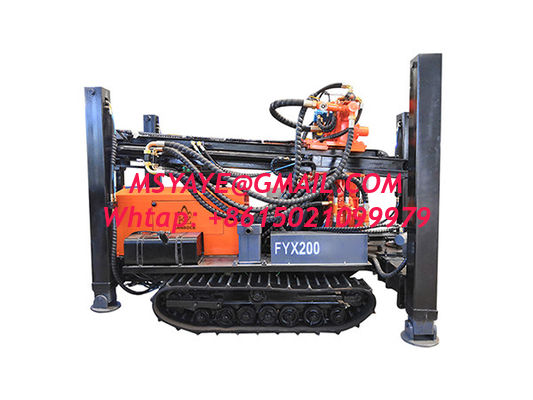

FY180/FY200 180m 200m STEEL TRACK CRAWLER WATER WELL DRILLING machine portable water well drilling rigs deep
Product Features
● Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.
● Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, the shallow
layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.
● The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air
Drilling Depth | 180m |
Drilling Diameter | 140-254mm |
One-Time Advance Length | 3.30m |
Walking Speed | 2.50km/h |
Climbing Angles | 30 degree |
Engine Power | 55KW |
Work Air Pressure | 1.7-2.5 Mpa |
Air Consumption | 17-30m3/min |
Drill Pipe Length | 2m, 3m |
Drill Pipe Diameter | 76mm, 89mm |
Rig Lifting Force | 10 ton |
Rotary Speed | 45-65 rpm |
Rotary Torque | 3200-4600 N.m |
Weight | 4500KG |
Dimensions | 3800*1500*2200mm |
Drilling Depth | 200m |
Drilling Diameter | 140-305mm |
One-Time Advance Length | 3.40m |
Walking Speed | 2.50km/h |
Climbing Angles | 30 degree |
Engine Power | 68KW |
Work Air Pressure | 1.7-3.0 Mpa |
Air Consumption | 17-30 m3/min |
Drill Pipe Length | 2m, 3m |
Drill Pipe Diameter | 76mm, 89mm |
Rig Lifting Force | 12 ton |
Rotary Speed | 40-70 rpm |
Rotary Torque | 3500-4800 N.m |
Weight | 5000KG |
Dimensions | 3900*1650*2250mm |
600M 800M depth Water Well Drilling Rig
Product Features
● Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.
● Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, the shallow
layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.
● The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air
drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.
Drilling Depth | 600m |
Drilling Diameter | 140-350mm |
One-Time Advance Length | 6.60m |
Walking Speed | 2.50km/h |
Climbing Angles | 30 degree |
Engine Power | 118KW |
Work Air Pressure | 1.7-3.5 Mpa |
Air Consumption | 17-42m3/min |
Drill Pipe Length | 2m, 3m, 6m |
Drill Pipe Diameter | 102mm, 108mm, 114mm |
Rig Lifting Force | 28 ton |
Rotary Speed | 45-115 rpm |
Rotary Torque | 8500-11000 N.m |
Weight | 12000KG |
Dimensions | 6000*2200*2850mm |
Drilling Depth | 700m |
Drilling Diameter | 140-400mm |
One-Time Advance Length | 6.60m |
Walking Speed | 2.50km/h |
Climbing Angles | 30 degree |
Engine Power | 140KW |
Work Air Pressure | 1.7-3.5 Mpa |
Air Consumption | 17-42m3/min |
Drill Pipe Length | 2m, 3m, 6m |
Drill Pipe Diameter | 102mm, 108mm, 114mm |
Rig Lifting Force | 30 ton |
Rotary Speed | 55-120 rpm |
Rotary Torque | 8850-13150 N.m |
Weight | 13000KG |
Dimensions | 6100*2200*2900mm |
==================================================================================
please feel free contact us, whatsapp/wechat::008615021099979
=====================================================
Drilling Depth | 600m |
Drilling Diameter | 140-350mm |
One-Time Advance Length | 6.60m |
Walking Speed | 2.50km/h |
Climbing Angles | 30 degree |
Engine Power | 118KW |
Work Air Pressure | 1.7-3.5 Mpa |
Air Consumption | 17-42m3/min |
Drill Pipe Length | 2m, 3m, 6m |
Drill Pipe Diameter | 102mm, 108mm, 114mm |
Rig Lifting Force | 28 ton |
Rotary Speed | 45-115 rpm |
Rotary Torque | 8500-11000 N.m |
Weight | 12000KG |
Dimensions | 6000*2200*2850mm |
Drilling Depth | 700m |
Drilling Diameter | 140-400mm |
One-Time Advance Length | 6.60m |
Walking Speed | 2.50km/h |
Climbing Angles | 30 degree |
Engine Power | 140KW |
Work Air Pressure | 1.7-3.5 Mpa |
Air Consumption | 17-42m3/min |
Drill Pipe Length | 2m, 3m, 6m |
Drill Pipe Diameter | 102mm, 108mm, 114mm |
Rig Lifting Force | 30 ton |
Rotary Speed | 55-120 rpm |
Rotary Torque | 8850-13150 N.m |
Weight | 13000KG |
Dimensions | 6100*2200*2900mm |
