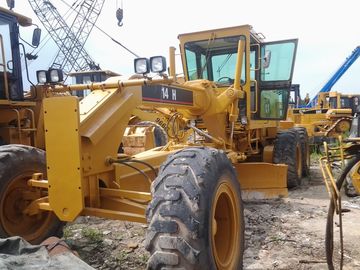

used motor grader 14H second hand MOTOR GRADER 2nd grader original paint

Large Image : used motor grader 14H second hand MOTOR GRADER 2nd grader original paint

Product Details:

Place of Origin:	USA、JAPAN UK
Certification:	CE,ISO
Model Number:	985

Payment & Shipping Terms:

Minimum Order Quantity:	1.00
Price:	USD1.0
Packaging Details:	Whatsapp: +8615021099979
Delivery Time:	Whatsapp: 008615021099979
Payment Terms:	Whatsapp: +8615021099979
Supply Ability:	Whatsapp: +8615021099979

Contact Now

Detailed Product Description

Year:	1999	Origin:	USA
COLOR:	YELLOW	Condition:	USED
HOURS:	6000

used motor grader 14H second hand MOTOR GRADER 2nd grader in dubai

used motor grader 14H second hand MOTOR GRADER 2nd grader original paint 0

140K Specification

Engine
Make
Model
Net Power Gear 1-2	165 hp	123 kw
Net Power Gear 3-4	185 hp	138 kw
Power Measured @	2000 rpm
Net Power Gear 5-6	185 hp	138 kw
Number of Cylinders	6
Net Power Gears 7-8	185 hp	138 kw
Max Power	185 hp	138 kw
Displacement	629 cu in	10.3 L
Operational
Std Operation Weight - Front Axle	9123 lb	4138 kg
Std Operation Weight - Rear Axle	23234 lb	10539 kg
Std Operation Weight - Total	32357 lb	14677 kg
Max Operation Weight - Front Axle	16733 lb	7590 kg
Max Operation Weight - Rear Axle	30139 lb	13671 kg
Max Operation Weight - Total	46872 lb	21261 kg
Fuel Capacity	105 gal	397 L
Cooling System Fluid Capacity	10 gal	38 L
Hydrauilc System Fluid Capacity	20.8 gal	80 L
Rear Diff/Final Drive Fluid Capacity	12.4 gal	47 L
Circle Gearbox Fluid Capacity	1.8 gal	7 L
Tandem Case Fluid Capacity (each)	16.9 gal	64 L
Transmission
Type	direct drive, power shift
Number of Gears - Forward	8
Number of Gears - Reverse	6
Max Speed - Forward	27.4 mph	44 km/h
Max Speed - Reverse	21.6 mph	34.7 km/h
Steering
Articulation L/R	20 degrees
Turning Radius	24.6 ft in	7.5 m
Front Axle
Wheel Lean	18 degrees
Oscillation - Total	32 degrees
Ground Clearance	2 ft in	600 mm
Hydraulic System
Pump Type	axial piston
Pump Flow	54.4 gal/min	206 L/min
Relief Valve Pressure	3500 psi	24150 kPa
Moldboard
Moldboard Width	12 ft in	3658 mm
Moldboard Height	24 in	610 mm
Moldboard Thickness	0.87 in	22 mm
Max Depth of Cut	28.1 in	715 mm
Side Shift Left	20.6 in	524 mm
Side Shift Right	26 in	660 mm
Blade Pull at Max Weight	42184 lb	19135 kg
Blade Down Pressure	28697.6 lb	13017 kg
Circle
Diameter	60.2 in	1530 mm
Shift Left	27.4 in	695 mm
Shift Right	28.7 in	728 mm
Max Reach Outside Tires - Left	74.6 in	1896 mm
Max Reach Outside Tires - Right	77.9 in	1978 mm
Max Lift Above Ground	18.9 in	480 mm
Blade Tip Angle - Front	40 degrees
Blade Tip Angle - Rear	5 degrees
Dimensions
Height to Top of Cab	10.3 ft in	3131 mm
Overall Length	28.6 ft in	8713 mm
Width Over Tires	8.1 ft in	2464 mm
Wheelbase	20.2 ft in	6169 mm
Blade Base	8.4 ft in	2561 mm
Tandem Axle Wheelbase	5 ft in	1523 mm
Rear Ground Clearance	1.1 ft in	344 mm
Front Ground Clearance	2 ft in	600 mm
