|Dimension(l*w*h):||Specific Model||Product Name:||Factory Produced Stone Aggregate Crushing Machine Plant|

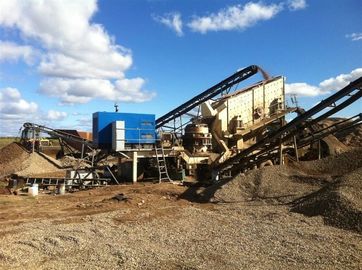

This mobile crushing station consists of vibrating feeder and jaw crusher. It plays a role of primary crushing stage, which can crush the hard stone with size around 700mm into small aggregates size range from 80mm-140mm. Its capacity is around 110-320t/h.
1.More advanced movable jaw assembly lengthens the using life. The movable jaw assembly is composed of high-quality steel casting (weld assembly); large flywheel (pulley) adopts inblock casting process; the heavy eccentric shaft is processed of forging. All of the above processes make SKJ series European Jaw Crusher own overwhelming reliability
2.Integral cast steel structure is adopted for bearing seat. The integral bearing seat can fit the frame completely, which not only enhances the radial strength but also reduces the maintenance cost
3.Bearing with larger specification and higher bearing capacity is used. Compared with the other series of jaw crushers, SKJ series European Jaw Crusher adopts larger and more durable bearing. The larger carrying capacity and efficient labyrinth seal lengthen the life span of bearing dramatically
4.Crusher chamber adopts “V” structure. Symmetric “V” chamber structure design, large angle of toggle plate, large stroke and optimal revolving speed bring larger feeding size, larger capacity, more evenly particle sizes and reduced abrasion of jaw plates
5.Adjustment of the discharge part is more convenient. The discharge opening is adjusted by hydraulic and wedge block type, which makes discharge opening adjustment more convenient and makes maintenance more automatic. This system can reduce downtime obviously when the chamber needs to be cleared for the machine halt caused by power failure
6.The more reasonable of design for kinetic parameters of crushing chamber, the more effective stroke at the bottom. The SKJ series adopts more higher centrifugal force and steep inclined angle of toggle plate design. Larger stroke, appropriate speed and flywheel inertia,which ensure better crushing performance
7.Tooth-type jaw plate is adopted. The adoption of tooth-type jaw plate increases the capacity and lengthens the maintenance period of spare parts
8.More rational design and more stable performance. The complete machine adopts modular design, which makes disassembly and transportation more convenient. The raised movable jaw plate can not only protect the movable jaw and bearing chamber but also ensure smooth discharging and realize optimal continuous crushing operations
9.Integrated motor frame. The motor frame and crusher frame of SKJ jaw are installed together , which reduces installation space and length of "V" belt.Because the crusher and the whole motor frame can move synchronously, and we can adjust the tension of "V" type belt by changing the position of the motor frame pivot, the V" type belt can last longer
10.Special damping device, effectively protect machine. The rubber damping device and limiting block of SKJ Jaw can reduce the impact to crusher foundation by absorbing the load of vibration peak, and extending transverse and longitudinal displacement. The unique installation system avoids the ground bolt damaging jaw crusher foundation
11.More safety and reliability. The flywheel cover is fixed on the aside plate of SKJ jaw by bolt, which protects the operator, and make the maintenance much easier.
