washing recycling LSX Series Sand Washing Machine porous plate recycling machine building work sand production line

China washing recycling LSX Series Sand Washing Machine  porous plate recycling machine building work sand production line supplier
washing recycling LSX Series Sand Washing Machine  porous plate recycling machine building work sand production line supplier washing recycling LSX Series Sand Washing Machine  porous plate recycling machine building work sand production line supplier washing recycling LSX Series Sand Washing Machine  porous plate recycling machine building work sand production line supplier washing recycling LSX Series Sand Washing Machine  porous plate recycling machine building work sand production line supplier

Large Image :  washing recycling LSX Series Sand Washing Machine porous plate recycling machine building work sand production line

Product Details:

Place of Origin: SHANGHAI
Brand Name: SHQI
Certification: ISO
Model Number: JXL3296

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD**
Packaging Details: container
Delivery Time: 28 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100 units per month
Contact Now
Detailed Product Description
Condition: New Dimension(l*w*h): Specific Model
Product Name: Factory Produced Stone Aggregate Crushing Machine Plant After-sales Service Provided: Engineers Available To Service Machinery Overseas
Color: Customizable Power(w): 110kw
Name: Quarry Stone Crusher Plant Max Feeding Size: 300-500mm

Sand Washing Recycling Machine

Sand washing recycling machine, as the name suggests, is a combination of the impeller sand washing machine and sand recycling machine, which is commonly used in sand production line for sand washing and recycling. It is much cleaner than similar equipment in sand washing, and sand recycled at a rate of 99%. Sand washing recycling machine of Shanghai Shunky is patented product, and all rights reserved.At present, there exists a lot of fine sand recycling machine manufacturers on the market, while the quality is not ensured. In order to take leads in the industry and for customers’ benefit, Shunky devoted to researching, finally developing sand washing recycling machine. It improves the quality of sand washing, and the coarse and fine sand is well graded.

Feature
1.Combination of sand washing and recycling, much cleaner than traditional sand washing machine.
2.Low energy consumption, energy saving and environmental friendly.
3.Long lifespan and lower maintenance cost.
4.Simple installation and small volume.
5.Making customerized machine according to different demands.



Specifications



Model

Power

(kw)

Specification of Separator

(mm)

Feeding Size

(mm)

Capacity

(m³/h)

Water Consumption

(m³/h)

Weight

(t)

Dimension

(mm)

LZ26-35 23.5 350 ≤10 20-50 50-80 6.18 5900×2000×2600
LZ26-55 27 550 ≤10 30-60 60-130 6.68 5900×2000×2600
LZ30-65 37.9 650 ≤10 50-120 70-150 9.3 6500×2500×3000
LZ30-75 56.4 750 ≤10 50-150 150-200 9.95 6500×2500×3000





=====================

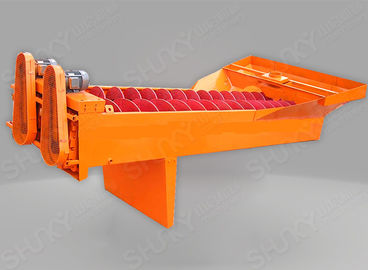

LSX Series Sand Washing Machine

Sand washing machine is mainly used for sand processing, electric pole factory, building work site and concrete dam, various sands classifying and dewatering. This sand washer adopts inclination of 15°, under the water tub, three weir plates form the sediment pool, the screw head is immersed in this pool, the screw is driven by electric motor through reducer rotating continuously, the fresh water is feeding from porous plate at bottom of sediment pool, this machine have three functions of washing, dewatering, classifying.

washing recycling LSX Series Sand Washing Machine  porous plate recycling machine building work sand production line
Working

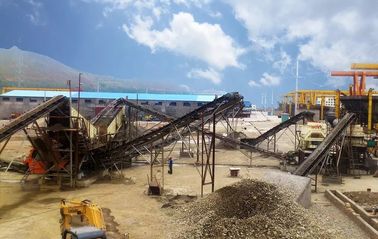

This stone production line (200TPH-250TPH) is mainly made up of vibrating feeder, jaw crusher, impact crusher, vibrating screen, etc. This reasonable configuration is suitable for crushing medium hard rock into stones. The actual production is ranging from 200TPH-250TPH.


please feel free contact us by whatsapp: 008615021099979
(wechat/Viber/line/IMO/facebook)



1.More advanced movable jaw assembly lengthens the using life. The movable jaw assembly is composed of high-quality steel casting (weld assembly); large flywheel (pulley) adopts inblock casting process; the heavy eccentric shaft is processed of forging. All of the above processes make SKJ series European Jaw Crusher own overwhelming reliability
2.Integral cast steel structure is adopted for bearing seat. The integral bearing seat can fit the frame completely, which not only enhances the radial strength but also reduces the maintenance cost
3.Bearing with larger specification and higher bearing capacity is used. Compared with the other series of jaw crushers, SKJ series European Jaw Crusher adopts larger and more durable bearing. The larger carrying capacity and efficient labyrinth seal lengthen the life span of bearing dramatically
4.Crusher chamber adopts “V” structure. Symmetric “V” chamber structure design, large angle of toggle plate, large stroke and optimal revolving speed bring larger feeding size, larger capacity, more evenly particle sizes and reduced abrasion of jaw plates
5.Adjustment of the discharge part is more convenient. The discharge opening is adjusted by hydraulic and wedge block type, which makes discharge opening adjustment more convenient and makes maintenance more automatic. This system can reduce downtime obviously when the chamber needs to be cleared for the machine halt caused by power failure
6.The more reasonable of design for kinetic parameters of crushing chamber, the more effective stroke at the bottom. The SKJ series adopts more higher centrifugal force and steep inclined angle of toggle plate design. Larger stroke, appropriate speed and flywheel inertia,which ensure better crushing performance
7.Tooth-type jaw plate is adopted. The adoption of tooth-type jaw plate increases the capacity and lengthens the maintenance period of spare parts
8.More rational design and more stable performance. The complete machine adopts modular design, which makes disassembly and transportation more convenient. The raised movable jaw plate can not only protect the movable jaw and bearing chamber but also ensure smooth discharging and realize optimal continuous crushing operations
9.Integrated motor frame. The motor frame and crusher frame of SKJ jaw are installed together , which reduces installation space and length of "V" belt.Because the crusher and the whole motor frame can move synchronously, and we can adjust the tension of "V" type belt by changing the position of the motor frame pivot, the V" type belt can last longer
10.Special damping device, effectively protect machine. The rubber damping device and limiting block of SKJ Jaw can reduce the impact to crusher foundation by absorbing the load of vibration peak, and extending transverse and longitudinal displacement. The unique installation system avoids the ground bolt damaging jaw crusher foundation
11.More safety and reliability. The flywheel cover is fixed on the aside plate of SKJ jaw by bolt, which protects the operator, and make the maintenance much easier.

  • SKJ Series Jaw Crusher0
  • SKJ Series Jaw Crusher1
  • SKJ Series Jaw Crusher2
  • SKJ Series Jaw Crusher3


  • Feature
    1. Simple structure, transmission bearing of impeller depart from water and material.
    2. The loss of fine sand occupy very small proportion.
    3. No quick-wear part.
    4. Long service life.
    5. Reasonable structure, easy maintenance.
    6. High capacity and cleanliness of sand.



    Specifications



    Model Screw Diameter (mm) Tank Length (mm) Screw Quantity Max Feeding (mm) Capacity (t/h) REV (r/min) Power (kw) Motor Model Water Consumption (t/h) Machine Size (mm)
    LSX920 920 7585 1 ≤10 100 21 6-11 Y160L-6/11 10-80 8420×2180×3960
    2LSX920 920 7580 2 ≤10 200 21 6-11×2 Y160L-6/11 20-160 8420×3970×3960
    LSX1120 1120 9750 1 ≤10 175 17 6-18.5 Y200L1-6/18.5 20-150 10770×3950×4860
    2LSX1120 1120 9750 2 ≤10 350 17 6-18.5×2 Y200L1-6/18.5 40-300 10770×5260×4860
