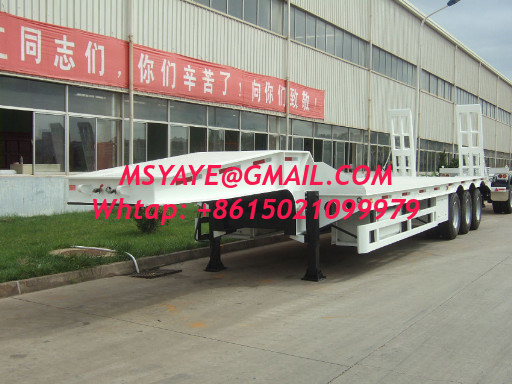

60 ton low bed Semi-trailer with tri-axle and extendable side
The trailer is designed for stevedori ng and transporting engineer truck.
Length: Approx 15,152mm
Width: Approx 3,020 mm including the extendable side plate.
Height of the platform: Approx 1,235mm @ unload
King Pin Location: Approx 450mm from the front face of the front bolster
Unladen platform length: Approx 11,350mm
Axle spacer: Approx 10,375mm + 1,310mm + 1,310mm
Lading gear location: Approx 2,350 from the kingpin position.
Fifth wheel (King Pin ) Height: Approx 1,215mm with the chassis level
(The above dimension will be adjusted according to the tractor specification. )
