Large Image :  Impact Crusher portable crushing plant crushing technology vibrating feeder jaw crusher hydraulic cone crusher

Product Details:

Place of Origin: SHANGHAI
Brand Name: SHQI
Certification: ISOO 90001.0
Model Number: JXL326PF

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD**
Packaging Details: container
Delivery Time: 28 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100 units per month
Contact Now
Detailed Product Description
Condition: New Dimension(l*w*h): Specific Model
Product Name: Factory Produced Stone Aggregate Crushing Machine Plant After-sales Service Provided: Engineers Available To Service Machinery Overseas
Color: Customizable Power(w): 110kw
Name: Quarry Stone Crusher Plant Max Feeding Size: 300-500mm

Impact Crusher portable crushing plant crushing technology vibrating feeder jaw crusher hydraulic cone crusher

HPS Series Cone Crusher portable crushing plant crushing technology vibrating feeder jaw crusher

HPS Series Cone Crusher

HPS series cone crusher integrated crushing speed, stroke and crushing chamber ideally, not only improving the capacity and quality, but also expanding the range of applications, from limestone to iron ore, roadbed stone to manufactured sand and small mobile crushing station. HPS series cone crusher shows the excellent crushing capacity in secondary crushing and fine crushing from rock with high hardness to conventional rock .HPS series cone crusher is the latest generation hydraulic cone crusher based on Shanghai Shunky several years and several generations product experience on R&D, especially CS series cone crusher whose technology is reliable demonstrated by testing, integrating the advanced technology at home and aboard. HPS series cone crusher is smarter and more humanized in structure, operation and maintenance, etc.

Impact Crusher portable crushing plant crushing technology vibrating feeder jaw crusher hydraulic cone crusher

please feel free contact us by whatsapp: 008615021099979
(wechat/Viber/line/IMO/facebook)

(100-150TPH) Hard Rock Mobile Crushing Mobile Jaw Crusher Portable Crushing Plant

This mobile crushing station consists of vibrating feeder and jaw crusher. It plays a role of primary crushing stage, which can crush the hard stone with size around 700mm into small aggregates size range from 80mm-140mm. Its capacity is around 110-320t/h.

(500TPH-600TPH) Medium Hard Rock

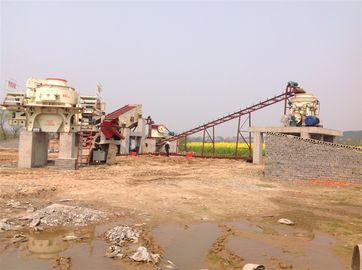

The stone production line (500tph-600tph) mainly consists of vibrating feeder, jaw crusher, 2 sets impact crushers, 2sets vibrating screens, etc. In order to meet the large-output requirement, this configuration is energy-saving and high-efficiency. It can crush medium hard rock into stone at the rate of 500TPH to 600TPH.

Impact Crusher portable crushing plant crushing technology vibrating feeder jaw crusher hydraulic cone crusher


Specifications



No. Equipment Model Quantity Power(Kw)
1 Vibrating Feeder GZD1100X4200 1 15-18.5
2 Jaw Crusher PE750X1060 1 90-110
3 Chassis Tri-axial 1


(100-150TPH) Hard Rock Mobile Crushing Screening &Washing Plant Sand Making Plant



please feel free contact us by whatsapp: 008615021099979
(wechat/Viber/line/IMO/facebook)



Feature
1.Manufacturing technique is of world class
2.The movable jaw assembly is of more advanced technology. It adopts high quality welding technology, and the eccentric shaft is elaborate
3.Integral cast steel structure is adopted for bearing seat to ensure the complete match with the frame
4.Finite Element Analysis is adopted to strengthen the crusher
5.The crushing chamber adopts "V" shape structure, which makes the feeding port's actual width be in accordance with the nominal
6.Discharging port adjustment is quicker and more convenient. Wedge block adjustment device is easier, safer and faster
7.Larger and more wearable main bearing is used to lengthen the service life; The bearing capacity is higher and effective labyrinth seal also lengthens the lifespan
8.The teeth protection plate increases the length of jaw plate

  • JCE Jaw Crusher0
  • JCE Jaw Crusher1
  • JCE Jaw Crusher2
  • JCE Jaw Crusher3

  • PY Series Cone Crusher0
  • PY Series Cone Crusher1
  • PY Series Cone Crusher2
  • PY Series Cone Crusher3


  •

    Specifications



    Model Cavity Tape Standard Type Short Type

    Power

    (kw)

    Capacity

    (t/h)

    Feed Size

    (mm)

    Min Discharging

    Size(mm)

    (mm)

    Min Discharging

    Size(mm)

    HPS200 Extra Coarse         132-200 90-250
    Coarse 185 19 76 10
    Medium 125 17 54 6
    Fine 95 13 23 6
    Extra Fine     10 5
    HPS300 Extra Coarse 230 25     180-250 115-440
    Coarse 210 20 75 10
    Medium 150 15 50 8
    Fine 105 10 20 6
    Extra Fine     20 6
    HPS400 Extra Coarse 295 30     280-355 140-630
    Coarse 250 25 90 10
    Medium 195 20 50 8
    Fine 110 14 40 6
    Extra Fine     30 6
    HPS500 Extra Coarse 330 30     355-450 175-790
    Coarse 285 25 90 13
    Medium 200 20 55 10
    Fine 133 16 40 8
    Extra Fine     35 6
    HPS800 Extra Coarse 353 32     550-630 260-1200
    Coarse 297 32 155 13
    Medium 267 25 92 10
    Fine 219 16 33 6
    Extra Fine
    Discharge Opening(mm)
    Type t/h 10mm 13mm 16mm 19mm 22mm 25mm 32mm 38mm 45mm 51mm
    HPS200 t/h 90-120 120-150 140-180 150-190 160-200 170-220 190-235 210-250
    HPS300 t/h 115-140 130-185 180-220 200-240 220-260 230-280 250-320 300-380 350-440
    HPS400 t/h 140-175 185-230 225-280 255-320 275-345 295-370 325-430 360-490 410-560 465-630
    HPS500 t/h 175-220 230-290 280-350 320-400 345-430 365-455 405-535 445-605 510-700 580-790
    HPS800 t/h 260-335 325-425 385-500 435-545 470-600 495-730 545-800 600-950 690-1050 785-1200
